MAKITA DGA517Z
18v Angle grinder - 5" (125mm)
- Body only - No battery, charger or case
- No load speed: 3000 - 8500rpm
- Brushless motor
- Paddle switch
- Cardboard box
- Body only - No battery, charger or case
- No load speed: 3000 - 8500rpm
- Brushless motor
- Paddle switch
- Cardboard box
- Body only - No battery, charger or case
- No load speed: 3000 - 8500rpm
- Brushless motor
- Paddle switch
- Cardboard box
DGA517Z

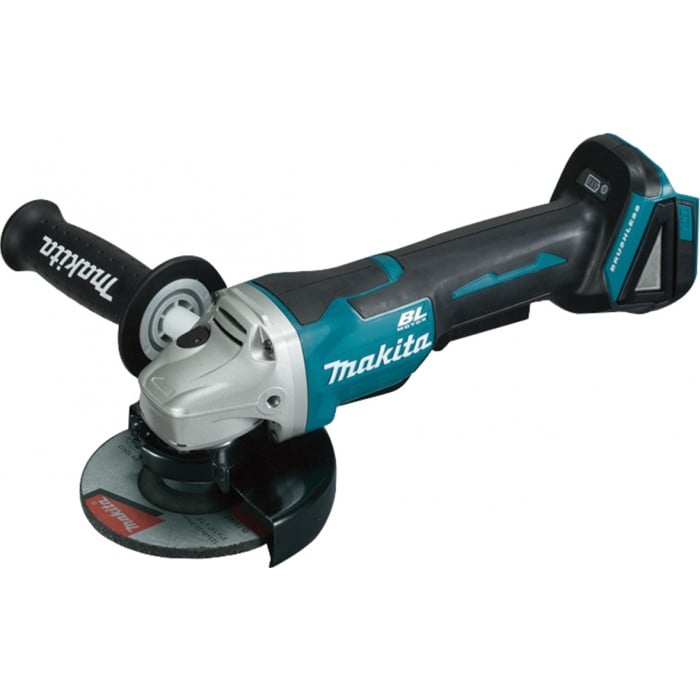

The DGA517Z is an 18V cordless brushless angle grinder from Makita’s LXT range, designed for professional users who want variable speed, paddle switch control, and enhanced safety in a compact 125 mm format. It’s supplied as a body-only unit — perfect if you already own compatible batteries and charger.
Key Features:
• Battery: 18V Li-Ion (LXT platform)
• Disc Diameter: 125 mm
• No-Load Speed: 3,000 – 8,500 rpm (variable speed)
• Brushless Motor: Improves efficiency and extends tool life
• Variable Speed Control: Dial-based for material-specific adjustment
• Electric Brake: Stops the wheel quickly after release
• Soft Start: Smooth acceleration for better control
• Active Feedback Sensing Technology (AFT): Shuts down the tool if rotation suddenly slows
• Automatic Torque Drive (ADT): Adjusts speed and torque under load
• Anti-Restart Function: Prevents accidental start-up after battery change
• Paddle Switch (Deadman): Enhances safety with immediate shut-off
• Battery Fuel Gauge: Indicates remaining charge
• Removable Dust Covers: Help protect internal components
• Supplied With: Side handle, lock nut wrench, and cardboard box (no battery or charger)
Technical Specifications:
• Weight (with battery): 2.4 – 3.1 kg
• Length: 382 mm
• Spindle Thread: M14
• Sound Pressure Level: 83 dB(A)
• Sound Power Level: 91 dB(A)
• Vibration Level (Surface Grinding): 6.0 m/s²
• Vibration Level (Disc Sanding): ≤ 2.5 m/s²
Alternative: DGA513Z
Same 125 mm disc and 18V platform, but with a slide switch instead of a paddle — ideal if you prefer a different switch style while maintaining the same performance and safety features.
nd safety features.
An introduction to angle grinders: Angle grinders have a wide variety of uses amongst, for example, engineers, stone masons, welders, bricklayers & scaffolders. The grinding disc is mounted on a head which sits at right angles to the motor's drive shaft. They are occasionally referred to as disc or side grinders. Cordless angle grinders are concentrated at the smaller disc diameter end of this range. Click here to see all our grinders
To choose between angle grinders: Disc diameter is the key choice to make when selecting an angle grinder. They range in disc diameter size from 4' (100mm) - 9' (230mm) with the 4.1/2' (115mm) & 9' (230mm) grinders being the most popular choices. Smaller grinders rotate the discs at a higher speed. These tools all have a 5' disc diameter. Click here to see all our angle grinders
To make sure you've got the right angle grinder - 5' (125mm): Choosing the right battery: Cordless (or battery powered) tools have various chemical battery types; Li-ion is the latest technology, prior to that it was Ni-MH and Ni-Cad was the original. The higher the Ah (Ampere hours) the longer the interval between charges; the fewer times you recharge a battery the longer it will last. Some cordless tools can also come without batteries - also referred to as naked, bare units or body only. These tools are supplied without a battery or charger and more often than not without any accessoires. As a result they are significantly cheaper in price.
